Sunday, July 17, 2011

Testing html email posts.

Testing of roof cladding, using a airbag. Notice oil canning.

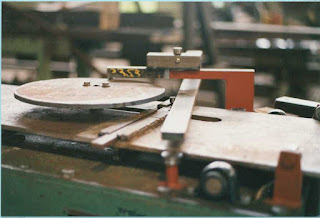

Tube profile machine, used to cut the CHS tubes used in the construction of the Adelaide Tropical Conservatory.
















Images don't come through in email, have to insert later. And usual problems alignment of text and the images.

Sunday, July 03, 2011

Height Versus Span Design charts for Steel Sheds

Height Versus Span Design charts for estimating member sizes for cold-formed steel sheds.

Wind TC3 to AS1170.2

Wind TC2 to AS1170.2

Full range of design charts for TC3, with variable frame spacing

For manufacturers one use of the charts is to plot sales history frequency of various size sheds on the charts and use to determine an optimum section for a range of sheds. It is not economical to keep changing size of components, just because of minimum weight structure: doing so does not provide minimum cost structure. Set up times for roll forming, material change overs from C150 to C200 or variations in material thickness all add cost.

For further discussion join the linked In group:

PreEngineered Manufactured Building Systems Group


For the application I wrote to generate the charts, join ExcelCalcs.
